• Hobart Dishwasher, HATCO Heat Boost, Sink, Commercial Faucet, InSinkerator, Ceiling Exhaust, optional roof fan

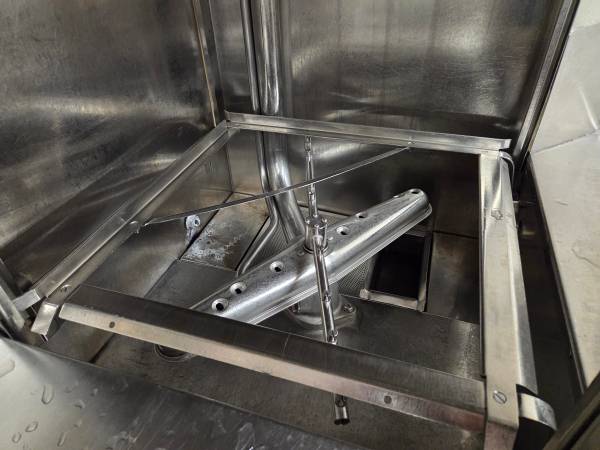

Commercial Dishwasher
o Power: 480V 3phase 60Hz 27.9A
o 22kW tank heater
o Clean up to 202 racks per hour
o Opti-RinSe system
o Insulated, interlocked, double hinge inspection doors
o Thermal Layer Curtains help keep heat inside
o Exhaust requirement: Entrance 200CFM, Discharge 400CFM
o Stainless steel construction
o Drain stub included as shown
o Ceiling Exhaust
o Roof exhaust fan optional

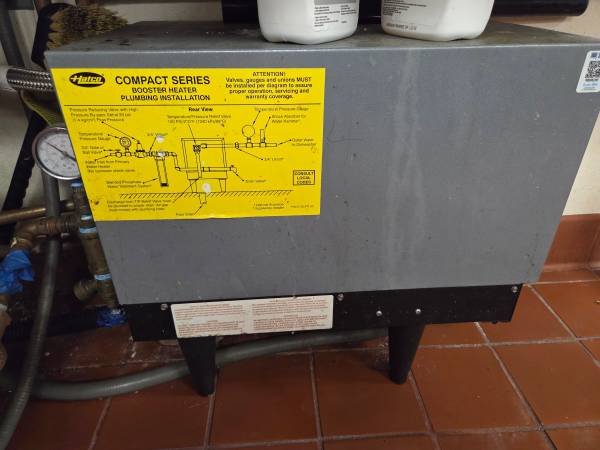

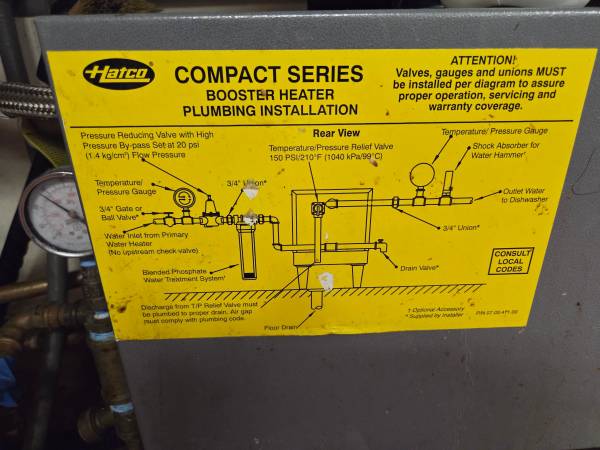

• HATCO Model Water Heater
o Temperature booster (up to 180ºF)
o 16 gallons capacity
o Recovery rates: 271 GPH @ 40ºF rise, 155 GPH @ 70F rise
o Power: 480V 50-60Hz 3phase 27kW 32.5A
o Without LCD
L Shape Corner Cleaning station
Clean Dish Table Stainless Steel is unbranded 10.7' long
Four legs, will stand on its own
Dirty dish input table Stainless Steel with commercial faucet is unbranded is 7’7”
Stainless Wall Rack 61” x 22”
InSinkErator SS-100-47 Details – retail $3,300 included
The InSinkErator SS-100-47 is a 1 hp commercial garbage disposer that's suitable for use at soiled dish tables or vegetable prep areas in a restaurant, hotel, hospital, or cafeteria kitchen that serves up to 150 persons per meal. It features a totally enclosed, air-cooled motor that's designed for efficiency and long life, thanks to its built-in thermal overload protection. Plus, the disposer includes a durable stainless steel grind chamber with stationary and rotating cast nickel chrome alloy cutting elements; these help ensure dependable service. For lasting sanitation, the unit's exterior is paint free, with an all stainless steel and chrome plated construction.
This commercial disposer requires a 208-230/460V, 60 Hz, 3 phase electrical configuration for operation.
InSinkerator one HP SS-100-47 garbage disposers.
Overall Dimensions:
Height: 18 1/4"
Pick up West Hartford, CT
