2025 Suzuki Kingquad 750Axi Power Steering SE Plus 722 - $9,999 (SWANZEY NH)

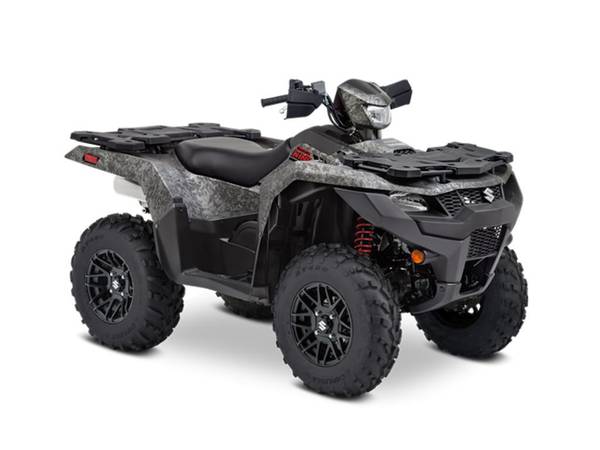

2025 Suzuki KingQuad 750AXi Power Steering SE Plus

Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting, and is ready for you to join its history. The KingQuad 750AXi Power Steering SE+ helps tackle challenging terrain with the capabilities that only a KingQuad possesses.

Features may include:

• Engine

The 722cc, DOHC, single-cylinder, liquid-cooled, four-stroke engine delivers strong low- to mid-range torque and impressive peak horsepower. The four-valve cylinder head has large 36mm intake valves and straight ports for superb cylinder charging efficiency. A sportbike-derived chain-and-gear camshaft drive system helps create a compact engine.

• Transmission

The Quadmatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off to help reduce speed when riding downhill.

• Chassis

Independent double A-arm front suspension (6.7 inches of wheel travel) and the fully independent, A-arm/I-beam rear suspension (7.7 inches of wheel travel) use four large diameter, gas-charged shock absorbers with five-way spring preload adjustment.

• Electrical

The multi-function instrument panel has excellent appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for the speedometer, odometer, twin trip meter, hour meter, clock, fuel level, riding range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.

• Body & Styling

The bold, angular bodywork is coated with the unique Cast Carbon pattern and features high-clearance fenders that offer great protection for the rider. Refined panels simplify maintenance needs, such as oil level checks and fuel and air filter service.

• Additional

A variety of Genuine Suzuki Accessories are available, including winches, windshield, front and rear bumpers, quick-release snowplow, aluminum skid pans, rack extensions, utility box, and more.

• Year: 2025
• Make: Suzuki
• Model: Kingquad 750Axi Power Steering SE Plus
• Condition: New
• Type: Utility
• Primary Color: CAST CARBON

• Frame: Steel
• Front Adjustable Fork Pre-Load
• Front Travel (in): 6.7
• Front Travel (mm): 170.2
• Number Rear Shock Absorbers: 2
• Rear Adjustable Shock / Spring Pre-Load
• Rear Stabilizer Bar
• Rear Travel (in): 7.7
• Rear Travel (mm): 195.6
• Steering Control: Handlebar
• Suspension - Front: Independent Double A-Arm
• Suspension - Rear: Independent Double A-Arm

• Clock
• Digital Instrumentation
• Hour Meter
• Seat Location: Driver
• Seat Material: Vinyl
• Seat Type: One-Piece

• Transmission Type: Continuously Variable (CVT)
• Engine Braking System
• Differential Lock
• Differential Lock Location: Front
• Driveline Type: Selectable 4X2 / 4X4
• Number Of Driveline Modes: 3
• Hi / Low Range
• Primary Drive (Front Wheel): Shaft
• Primary Drive (Rear Wheel): Shaft
• Reverse
• Transmission Brand: Quadmatic
• Limited Slip Differential
• Limited Slip Differential Location: Front
• Primary Drive (Engine / Transmission): Belt

• Bore (in): 4.1
• Bore (mm): 104
• Carburetion Type: Fuel Injected
• Compression Ratio: 9.9
• Cylinders: 1
• Displacement (ci): 44.1
• Engine Braking Brand Name: Engine Braking System
• Engine Cooling: Liquid
• Engine Size (cc): 722
• Engine Stroke: 4-Stroke
• Fuel Capacity (gal): 4.6
• Fuel Injector
• Fuel Requirements: Regular
• Snorkel Air Intake
• Starter Type: Electric
• Stroke (in): 3.35
• Stroke (mm): 85
• Valve Configuration: DOHC
• Valves: 4
• Valves Per Cylinder: 4

• Fender Storage
• Fender Storage Location: Front
• Front Fender Flairs
• Rear Fender Flairs
• Power Outlet
• Radiator Guard

• Brakes - Front: Dual Hydraulic Disc
• Brakes - Rear: Sealed Oil Bath Multi-Disc
• Front Brake Diameter (in): 7.9
• Front Brake Diameter (mm): 200
• Halogen Headlight(s)
• Headlight(s)

• A-Arm Skid Plate (Front)
• A-Arm Skid Plate (Rear)
• Bash Plate (Front)
• Bash Plate (Rear)
• Body Material: Plastic
• Front Tire Diameter (in): 25
• Front Tire Width: 8
• Full Length Skid Plate
• Ground Clearance (in): 10.2
• Ground Clearance (mm): 260
• Height (Inches): 50
• Height (mm): 1285
• Length (Inches): 84
• Length (mm): 2150
• Rear Hitch
• Rear Tire Diameter (in): 25
• Rear Tire Width: 10
• Towing Capacity (kgs): 599.7
• Towing Capacity (lbs): 1322
• Tube / Tubeless: Tubeless
• Wheelbase (in): 50.6
• Wheelbase (mm): 1285
• Width (Inches): 47
• Width (mm): 1215
